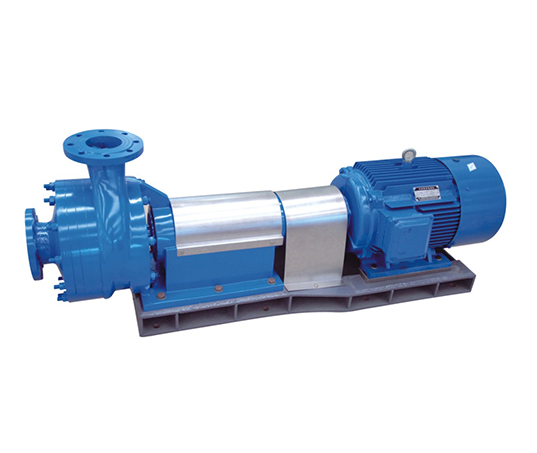

DTH Series Dynamic Homogenizer
Dynamic homogenizer is the production of extinction, flame retardant arithmetic of other viscose fiber spinning before the injection of the main equipment, its role is to add additives and viscose fully and evenly mixed, the mixture of high efficiency, good mixing effect.
Technical Parameters:
Type | DTH100 | DTH150 | DTH200 | |
Rate flow | 10 m3/h | 20 m3/h | 50 m3/h | |
Diameter of inlet and outlet | DN100 | DN150 | DN200 | |
Motor | Type | Y200L2-6 | Y250M-6 | Y315S-8 |
Power | 22kw | 37kw | 55kw | |
Rotate speed | 970rpm | 970rpm | 740rpm | |
Manufacturer | Dalian Motor Factory | |||
Maximum Pressure | 0.6Mpa | 0.9Mpa | 0.9Mpa | |
Material | Mixing disc | 321 | ||
Main shaft | 40Cr | |||
Pump body | QT600-2 | |||
Other main parts | Q235A and QT600-2 | |||
Working medium | Viscose Solution of Cellulose Xanthate (Only one way rotation is allowed) | |||
Working temperature | 0～400C | |||
Type of Connection | Direct Connection, Fuerkang Shaft Coupling | |||
Turn | Clockwise (from the motor to the pump body direction) | |||
Scope of supply | Includes pump body、coupling、motor and engine base | |||
