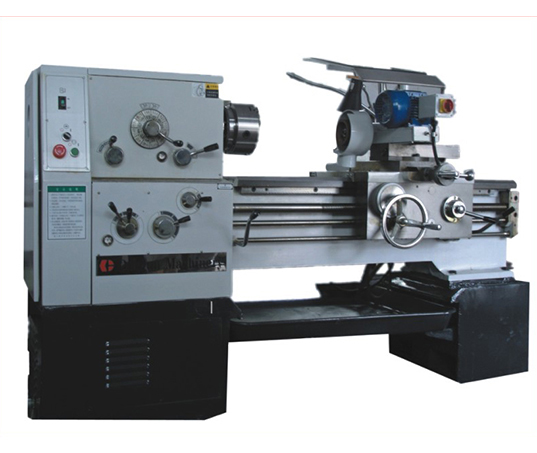

DCM150 Cutting Bush Grinding Machine
DCM150 cutting bush grinding machine is the special equipment for grinding the bush of the cutting machine. The machine is mainly used for the grinding of φ40-200mm cutting blade of the tow cutter. Also the machine can be used for turning off of inner and outer cylinder face, cone, end face and other all moving surfaces by dismounting the grinding head. The machine can also turn off various kinds of worms like metric, British, module, diameter pitch, etc, drilling and reaming.
Technical Parameters:
General specifications | |
1.Max turning diameter of work piece on the machine body | 360mm |
2. Max turning diameter of workpiece on the saddle | 210mm |
3. Max grinding diameter | 150mm |
4. Max workpiece | 750mm |
5. Max turning off length | 650mm |
Cutter saddle | |
1. Turing angle of the cutter rotor disc | ±90° |
2. Max horizontal course of lower cutter | 200mm |
3. Course of the cutter saddle for each scale movement of the lower cutter scale ring | 0.05mm |
4. Max course for upper cutter | 140mm |
Drive parts | |
1. Main motor type | Y112M-4B3 |
2.Power of the main motor | 4kw |
Grinding head motor | |
1. Type | YS7112 |
2. Power | 0.5kw |
Lubrication and cooling system | |
1. Cooling pump type | AYB-25 |
2. Cooling pump flux | 25L/min |
Weight and dimension | |
1.Weight | 1400kg |
2. Max workpiece length | 1992mm |
3.Width | 1000mm |
4.Height | 1170mm |
