DQY Series Trio Machine

Your current location: Home >> Products >> The traction machine

DQY Series Trio Machine

  • Category:The traction machine

  • Clicks:
  • Release date:2015/12/22
  • More
  • Online Inquiry
Details

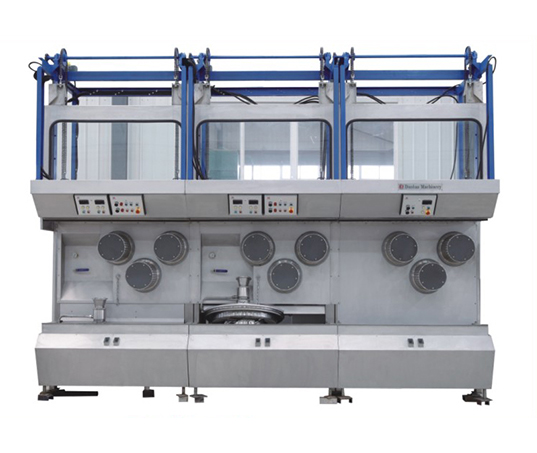

DQY Series Trio Machine

DQY Series Trio Machine is used for stretching the viscose tow to get high fiber tenacity. It works with the tow cutter.

Equipment structure

1.Stretching device

The stretching device consists of 3 stretch rollers with same diameters.

The viscose tow is wound around the stretch rollers, makes the tow draw over from the front-end equipment, for the later processing or to be stored in the viscose larry.

2.Driving part

The 3 stretch rollers are driven by three frequency modulation reduction motors separately. The speed of the motor is 15~73r/min.

3.Viscose container

The viscose container is mounted on the water tank, and the viscose tow can pass through it and fall into the viscose larry below.

4.Protection device

The protection device consists of sliding window and exhaust cover. The protection device and exhaust the harmful gases generated by the working process to reduce pollutions.

Technical specification

Type

single side, either right or left hand

Working medium

Viscose fiber

Working   temperature

20–80℃

Stretching   capacity

400–13000000 denier

Spinning speed

15–68m/min

Stretching   roller

Φ300mm×(310335) mm

Dimension (L×W×H)

1550×1490×3700    mm

Weight

Approx 1.5T

Material that   contact with the working medium

904L, 316L and 321(can be customized   depending on clients requirements)

Motor for   stretching roller

SEW or NORD

Motor for sliding   window

SEW or NORD
